Solar Street Light Installation Guide for Africa: Step-by-Step for EPC Contractors

Phase 1: Site Survey and Solar Resource Assessment

Before ordering any equipment, conduct a thorough site survey. For African installations, the key data points are: peak sun hours (PSH) for the specific location, shading analysis, soil bearing capacity for pole foundations, and road classification (arterial, collector, or residential).

Most Sub-Saharan African locations receive 4.5–6.5 PSH daily, which is excellent for solar street lighting. However, coastal areas in West Africa may experience seasonal cloud cover that reduces effective PSH by 15–20% during rainy seasons. Always use conservative PSH values (typically 4.0–4.5 PSH) for battery autonomy calculations.

Phase 2: Pole Spacing and Wattage Selection

Pole spacing depends on road width and required illuminance level. For a standard 7-metre residential road requiring 10 lux average illuminance, 30W all-in-one solar street lights at 25-metre spacing on alternating sides typically meet EN 13201 Class P4 requirements.

Road Type	Width	Recommended Wattage	Pole Spacing	Target Illuminance
Residential	6–8m	30–60W	20–25m	10–15 lux
Collector	8–12m	60–100W	25–30m	15–20 lux
Arterial	12–20m	100–200W	30–40m	20–30 lux

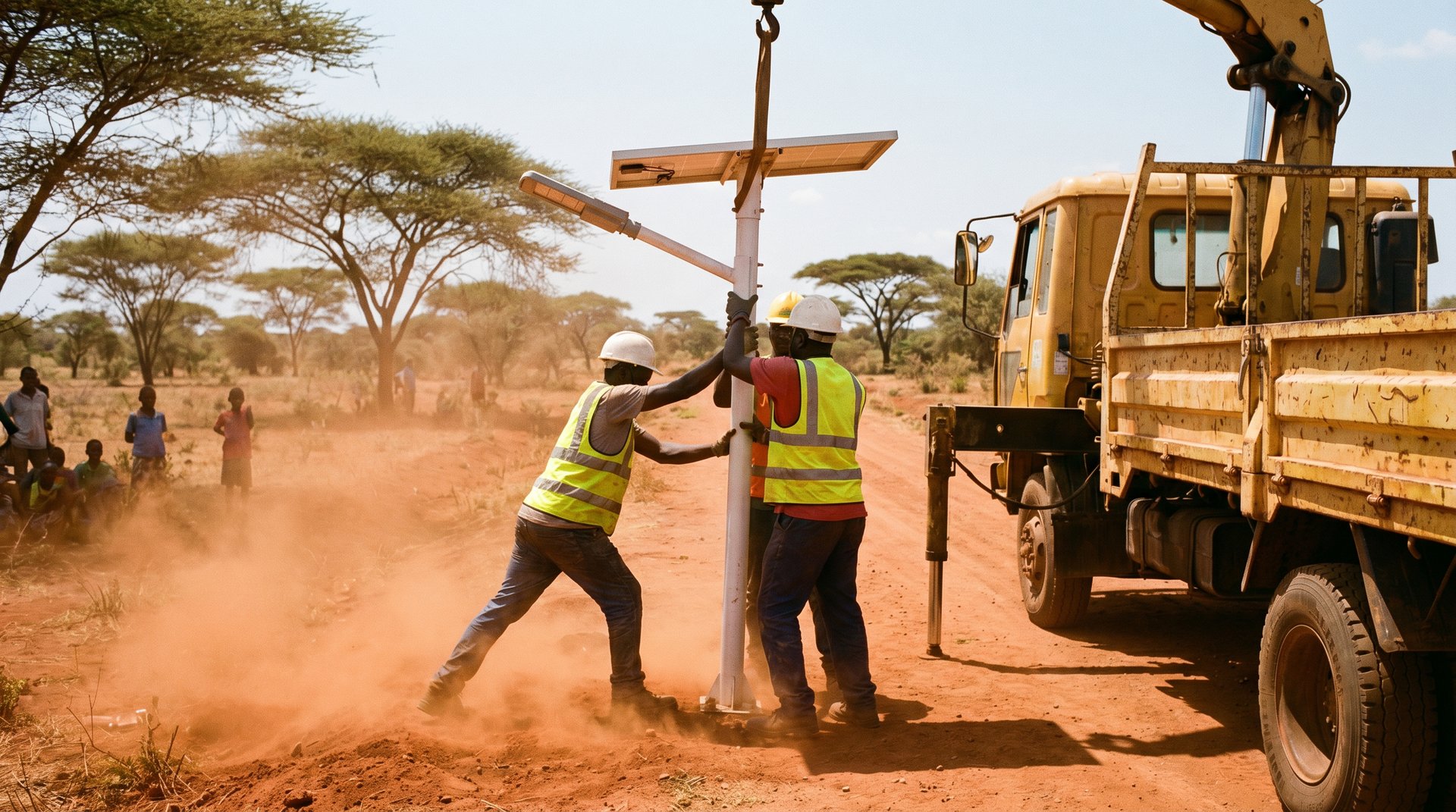

Phase 3: Foundation and Pole Installation

Standard solar street light poles require a concrete foundation of at least 600mm × 600mm × 800mm deep for poles up to 6 metres. In sandy or laterite soils common in West Africa, increase foundation depth to 1,000mm. Use M20 anchor bolts with a minimum embedment of 500mm.

Pole alignment is critical for solar panel orientation. In the Northern Hemisphere (North Africa), panels should face south. In Sub-Saharan Africa (south of the equator), panels should face north. For locations within 5° of the equator, a flat or minimal tilt angle of 5–10° is acceptable.

Phase 4: Electrical Connections and Commissioning

All-in-one solar street lights require minimal wiring — typically just the LED driver connection and battery terminal connections. Verify polarity before connecting battery terminals. Use IP68-rated waterproof connectors for all external connections.

During commissioning, verify: solar panel voltage (typically 18–22V open circuit for a 12V system), battery voltage (12.6–13.2V for a fully charged LiFePO4), and motion sensor operation. Set the controller to the appropriate working mode for the project requirements.

Phase 5: Maintenance Schedule

Solar street lights in Africa require minimal maintenance compared to grid-connected alternatives. Recommended maintenance intervals are: panel cleaning every 3 months (more frequently in dusty Sahel regions), LED inspection annually, battery capacity test every 2 years, and controller firmware update as needed.
