How to Choose the Right Wattage for Solar Street Lights in Africa

Understanding Lumens vs. Watts for Solar Street Lights

Modern LED solar street lights are rated in watts (power consumption) but specified in lumens (light output). The relationship between watts and lumens depends on the LED efficacy, which for quality solar street lights ranges from 130 to 180 lm/W. A 60W fixture with 150 lm/W efficacy produces 9,000 lumens — sufficient for most collector road applications in Africa.

When evaluating supplier quotations, always request the luminous efficacy (lm/W) specification. Products claiming unusually high lumen outputs at low wattages should be verified with independent photometric test reports (IES files).

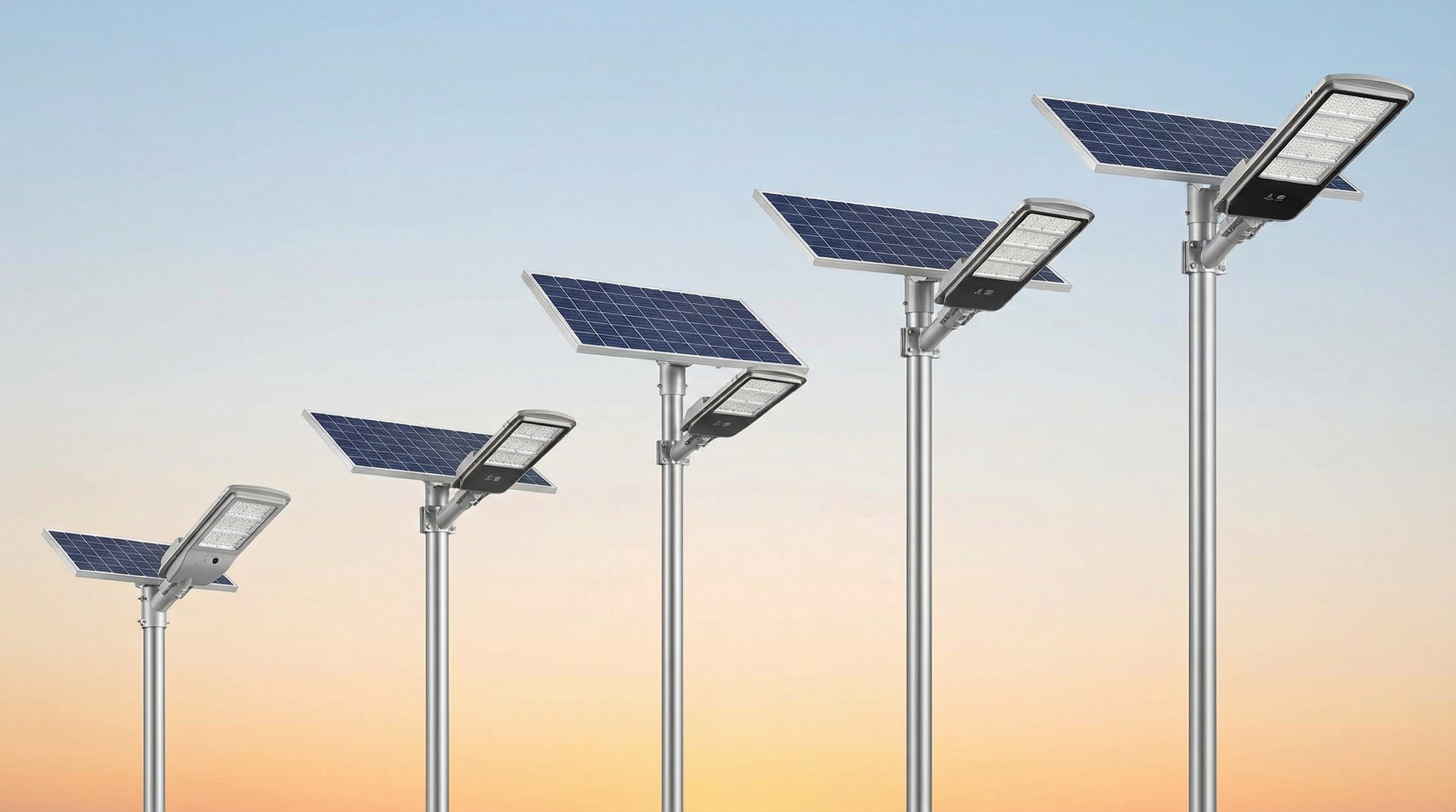

Wattage Selection by Road Classification

Wattage	Lumens (typical)	Application	Pole Height	Coverage Area
30W	3,900–4,500 lm	Residential lanes, footpaths	5–6m	20m × 8m
60W	7,800–9,000 lm	Residential roads, parking	6–7m	25m × 10m
100W	13,000–15,000 lm	Collector roads, intersections	7–8m	30m × 12m
150W	19,500–22,500 lm	Arterial roads, highways	8–10m	35m × 15m
200W	26,000–30,000 lm	Major highways, industrial	10–12m	40m × 18m

Battery Sizing Implications

Higher wattage directly increases battery capacity requirements. For a 100W fixture operating 12 hours per night with 3 days autonomy, you need approximately 3,600Wh of usable battery capacity. At 80% depth of discharge (DoD) for LiFePO4, this requires a 4,500Wh (4.5kWh) battery pack — significantly increasing system cost and weight.

For cost-sensitive projects, consider using motion sensors to reduce power consumption by 50–70% during low-traffic hours. A 100W fixture with motion sensing effectively operates at 30W for 8 hours and 100W for 4 hours, reducing daily energy consumption from 1,200Wh to 640Wh.

Climate Adjustments for African Regions

The Sahel region (Mali, Niger, Chad, Sudan) experiences extreme dust accumulation that reduces solar panel output by 15–25% if panels are not cleaned regularly. For Sahel installations, increase panel wattage by 20% above standard calculations. Coastal West Africa (Ghana, Nigeria coast) experiences high humidity and salt air — specify marine-grade IP66 or IP67 fixtures.
